Synology DiskStation DS216play

3022525

  • $369.00


H.265 Transcoding ready, personal cloud solution

4K H.265 transcoding ready for multimedia enthusiasts. DS216play is designed for video streaming in addition to fast data transfer and backup tasks from your devices. Efficient hardware paired with sound dampening design allows fits perfectly anywhere.

CPU

Dual-core 1.5GHz

Transcoding

4K Ultra HD video transcoding

Fast Performance

105 MB/s reading and 82 MB/s writing performance1

Eco-friendly

6.83 W in HDD hibernation / 15.08 W in access

Multimedia powerhouse

Access your multimedia content anytime, anywhere with an intuitive web-based interface.

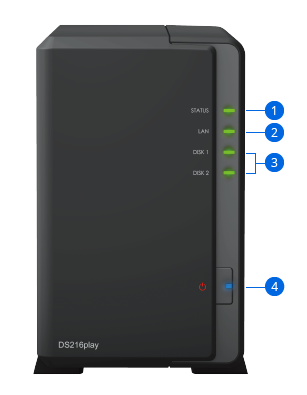

  • Status indicator
  • LAN indicator
  • Drive status indicator
  • Power button and indicator

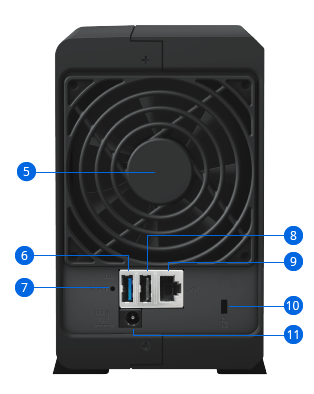

  • Fan
  • USB 3.0 port
  • Reset button
  • USB 2.0 port
  • 1GbE RJ-45 port
  • 10 Kensington Security Slot
  • 11 Power port
Hardware Specifications
CPU
CPU Model STM STiH412
CPU Architecture 32-bit
CPU Frequency Dual Core 1.5 GHz
Hardware Transcoding Engine H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (3840 x 2160)); maximum frame rate per second (FPS): 30
Memory
System Memory 1 GB DDR3
Storage
Drive Bays 2
Compatible Drive Type*(See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD (with optional 2.5" Disk Holder)
  • 2.5" SATA SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 20 TB (10 TB drive x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
RJ-45 1GbE LAN Port 1
USB 2.0 Port 1
USB 3.0 Port 1
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+*
  • exFAT*
Notes
  • HFS+ is read only, max 2TB volume size.
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 165 mm x 100 mm x 225.5 mm
Weight 0.88 kg
Others
System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Wireless Support (dongle)
Power Recovery
Noise Level* 18.5 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 60W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 15.08 W (Access)
6.83 W (HDD Hibernation)
British Thermal Unit 51.49 BTU/hr (Access)
23.32 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 2 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Support for Wake on WAN needs switch and routers which recognize Magic Packet.
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
RAID Migration Basic to RAID 1
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
Volume Expansion by Adding a HDD Synology Hybrid RAID
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 4
Maximum Concurrent CIFS/AFP/FTP Connections 256
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Log Center
Syslog Events per Second 400
